Seeing a Whirlpool washer F7E5 error code on your display or flashing LED panel indicates a Shifter Fault on Whirlpool, Maytag, and Amana top-load washers (VMW platform). This fault occurs when the main control board attempts to shift the drive transmission between Agitate and Spin modes but fails to receive position verification from the shift actuator’s optical speed sensor.
In most instances, an F7E5 code points directly to a failed shift actuator motor, a contaminated optical sensor, or a broken mechanical splutch assembly under the tub.
⚠️ SAFETY FIRST: Always unplug the appliance you're working on from the wall outlet, turn off the breaker, or both, to completely disable power before opening the top console or touching electrical wiring.
What Triggers the Whirlpool Washer F7E5 Error Code?
The shift actuator is mounted beneath the outer tub next to the drive pulley. It contains a small 120 VAC synchronous motor that moves the splutch cam ring and an optical sensor that tracks basket RPM and transmission position. If the control board sends power to shift but senses no movement within a set time frame, it aborts the cycle and stores the F7E5 fault code.
Common failure modes include:
- An open or shorted shift actuator motor winding.
- A dirty, moisture-damaged, or dead optical position sensor inside the actuator housing.
- Damaged, corroded, or chafed wiring between the shift actuator and the main control board (J16 header).
- Stripped plastic teeth on the splutch cam or shift ring binding the actuator lever.
Step-by-Step Diagnostic & Repair Guide
⚠️ Safety First: Unplug the washer from the wall outlet and turn off both hot and cold water supply valves before opening access panels or tipping the machine.
Step 1: Inspect the Splutch and Actuator Mechanically
- Tape the washer lid securely shut. Carefully tilt the machine backward against a wall or gently lay it on its back to access the drive system from underneath. Watch for residual water draining from the tub.
- Locate the shift actuator (the rectangular plastic component with a 6-pin wire harness attached near the center drive pulley).
- Inspect the white plastic splutch cam assembly and return spring. Verify that the actuator arm sits properly inside the splutch ring slot and that the plastic teeth are not cracked, stripped, or jammed with debris.
Step 2: Test the Shift Actuator Motor with a Multimeter
If the mechanical linkage is intact, perform an electrical resistance test on the shift actuator motor windings.
- Disconnect the 6-pin wire harness connector from the shift actuator.
- Set your digital multimeter to measure Resistance (Ohms / Ω).
- Touch your meter probes to Pin 2 and Pin 3 on the shift actuator motor terminals.
| Component Tested | Expected Resistance (Ω) | Diagnostic Verdict |
| Shift Actuator Motor (Pins 2 to 3) | 2,000 Ω to 3,500 Ω | PASS: Motor winding resistance is within factory specifications. |
| Shift Actuator Motor (Pins 2 to 3) | 0 Ω (Short) or Open / OL (Infinite) | FAIL: Internal motor failure. Replace the shift actuator assembly. |
Calibration & Diagnostic Modes by Machine Type
After installing a replacement shift actuator or clearing a mechanical jam, you must run a calibration cycle. The main control board uses calibration to recalculate the physical stop points of the shifter.
Category 1: Rotary Knob Top Loaders (VMW Platform)
Examples: Whirlpool WTW5000DW, Maytag MVWC565FW, Amana NTW4516FW
- Clear Memory: Turn the selector dial counterclockwise 1 full turn to reset the position counter.
- Enter Diagnostics: Turn the dial Right 3 clicks, Left 1 click, and Right 1 click within 6 seconds. All LED status lights will flash green when entry is successful.
- Run Calibration: Turn the dial until only the Rinse light is illuminated. Ensure the wash tub is completely empty, then press START. The washer will run an automated 2-to-4 minute self-calibration sequence. Do not interrupt this test.
Category 2: Push-Button / Digital Touch Top Loaders (Cabrio, Bravos, Smart Series)
Examples: Whirlpool WTW8500DC, Maytag MVWB835DW, MVW6230HC
- With the washer in Standby mode (plugged in, display powered off), choose any 3 non-power buttons.
- Press the keys in sequence: 1 – 2 – 3, 1 – 2 – 3, 1 – 2 – 3 within 8 seconds.
- All console display indicators will illuminate to verify active Service Diagnostics mode.
- Press Power / Cancel once to clear stored fault codes, then press Start while code
88orC0displays to initiate the automatic calibration test.
Category 3: Front-Load Washers (Duet, Epic, Modern Front Loaders)
Examples: Whirlpool WFW92HEFC, Maytag MHW5630HW
- Ensure machine is plugged in with display powered off.
- Select any control key (except Power) and execute: Hold 3 seconds $\rightarrow$ Release 3 seconds $\rightarrow$ Repeat 3 times.
- Alternatively, press a 3-key button sequence (1-2-3, 1-2-3, 1-2-3).
- The display will show saved diagnostic codes. Press Power / Cancel to clear history and exit.

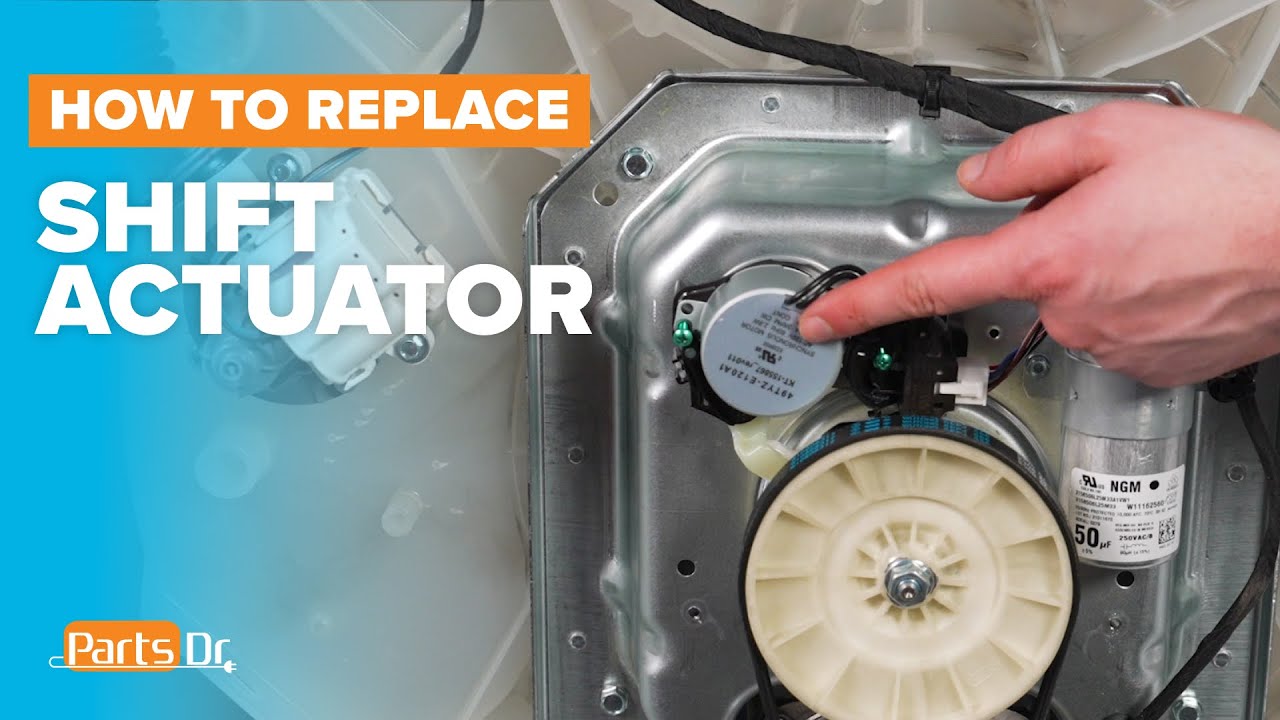

Video Guide: Replacing a Whirlpool / Maytag Shift Actuator
If your multimeter test indicates an open motor circuit or the optical sensor fails to read basket speed, replacing the shift actuator takes approximately 10 to 15 minutes. Watch this step-by-step installation guide:
How to Clear the F7E5 Error Code
- Power Hard Reset: Unplug the washing machine from the wall outlet for 5 full minutes to discharge board capacitors.
- Execute Calibration: Reconnect power and execute the model-specific Calibration Routine detailed above. The F7E5 code will clear automatically upon successful completion.
Once you determine the shift actuator is the source of the problem with your washer, replacing it might be one of the easiest yet most effective repairs you will do on the machine. Good luck, and don’t forget to calibrate the control before final testing.
